What is the measuring range of this angle meter?
It supports 4×90° angle measurement, meaning it can measure angles in all four quadrants across a full 360° range — ideal for slopes, inclines, and level checking in any orientation.

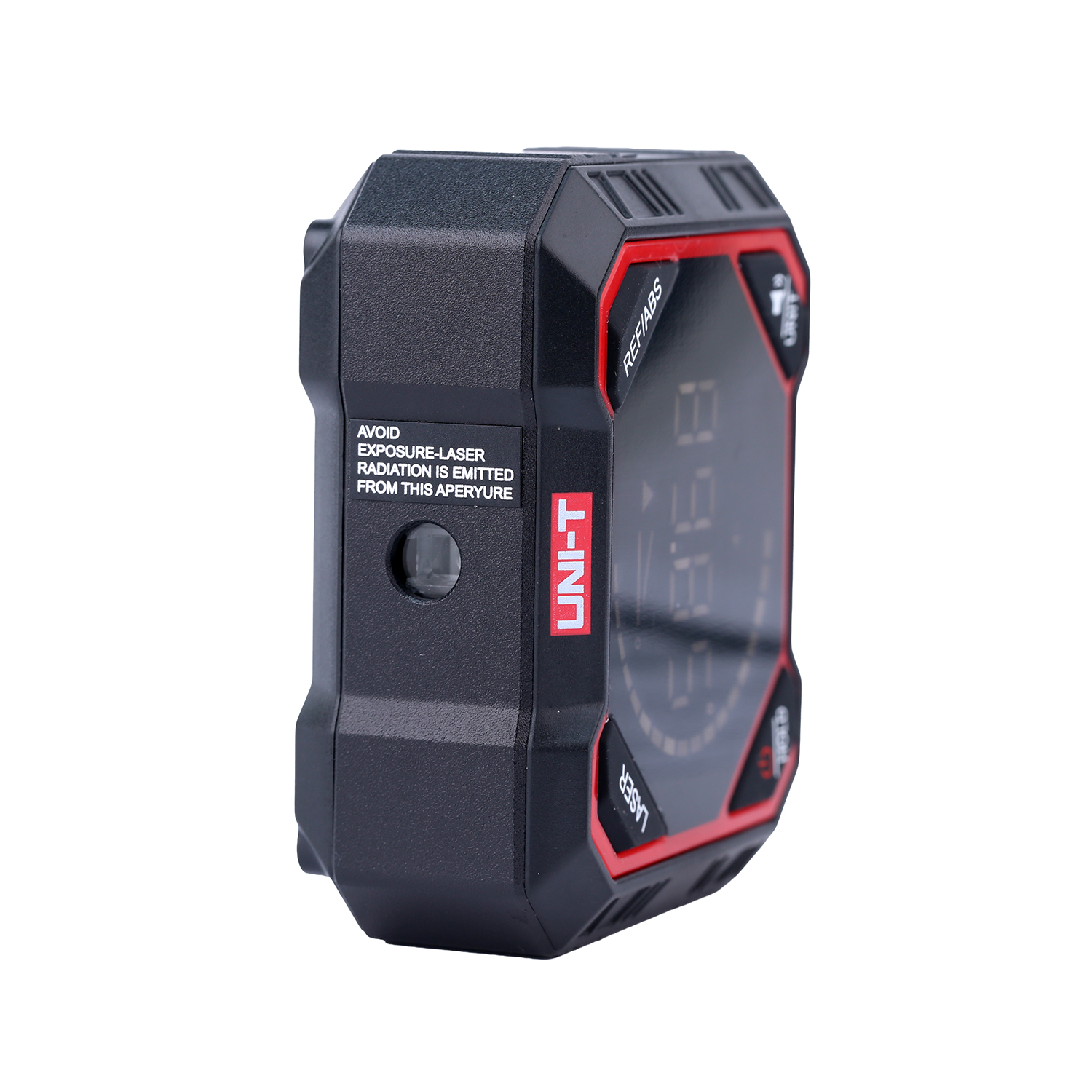

How many laser lines does it have, and what are they for?
The device is equipped with 3 laser lines. These provide precise visual reference lines, making alignment, marking, and transferring measurements quick and accurate.

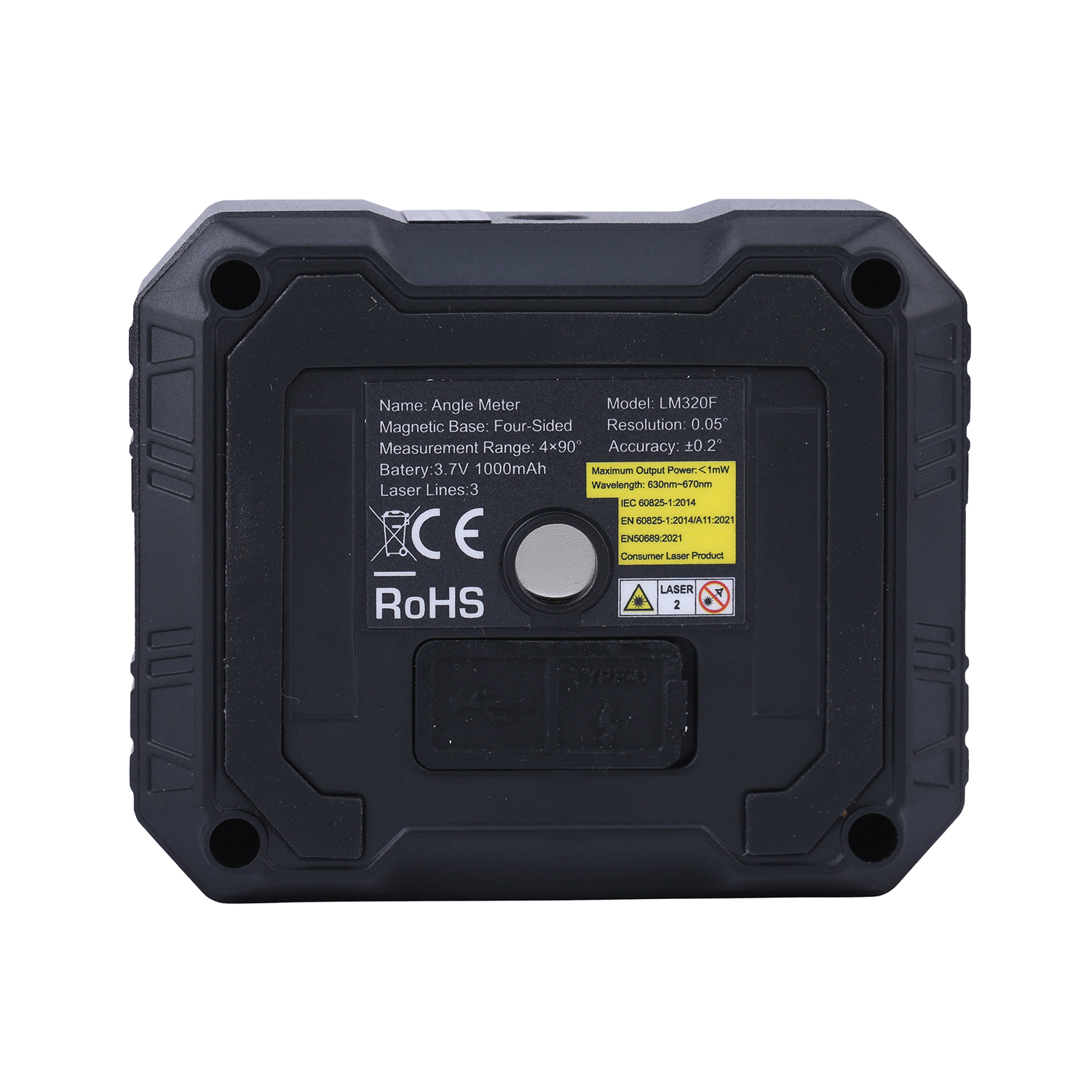

What is special about the magnetic base?
It features a four-sided magnetic base with magnetic mounting on multiple faces, so you can attach the meter securely to steel beams, pipes, machines, or other ferrous surfaces at virtually any angle.
What materials is it made of?
The frame is constructed from aluminum alloy, making the unit lightweight, durable, and easy to carry to any job site.
What’s the difference between relative and absolute measurement modes?
In absolute mode, the reading is referenced to true horizontal (0° level). In relative mode, you can set any angle as your zero reference — useful for comparing two surfaces or transferring a specific angle.
Which units can I display the results in?
You can switch between mm/m, in/ft, %, and degrees (°), so the meter adapts to different trades, standards, and personal preferences.
What type of battery does it use, and how long does it last?
It has a built-in rechargeable 1000 mAh lithium battery. It’s charged via USB and provides extended working time — no need to buy disposable batteries.

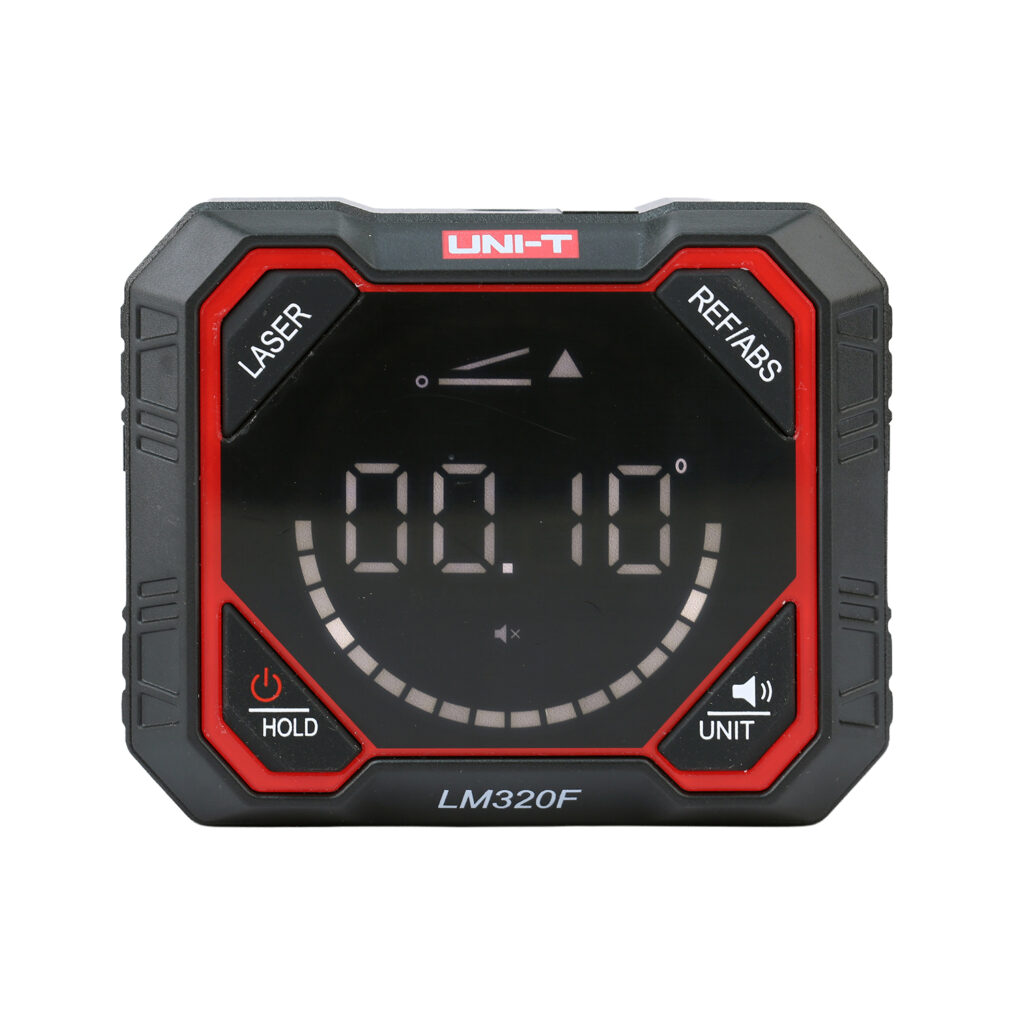

Is the screen easy to read in dim environments?
Yes. The meter features an LED-backlit screen, ensuring clear visibility in low-light conditions, and the display is rotatable for comfortable reading from any angle.

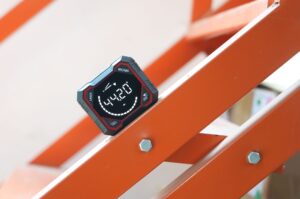

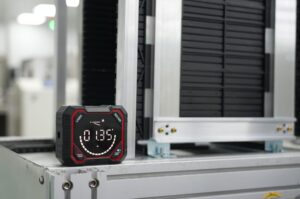

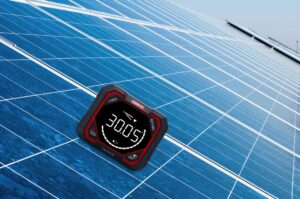

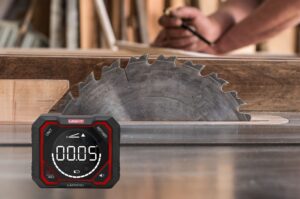

Who is this tool designed for?
It’s a great fit for carpenters, electricians, plumbers, tilers, HVAC installers, metal fabricators, and DIY users who need fast, accurate angle and slope measurements.
Can I use it hands-free?
Yes — thanks to the four-sided magnetic base, you can mount it on magnetic surfaces and read the rotatable screen while keeping both hands free for your work.
