What is the measurement range of the angle meter?
The device supports 4×90° angle measurement, covering a full 360° range in four quadrants.
What measurement modes are available?
It offers both relative and absolute measurement modes, so you can measure angles against a reference plane or track changes from a set zero point.
What units can I display measurements in?
You can switch between mm/m, in/ft, percentage (%), and degrees (°).
Is the screen easy to read in low light?

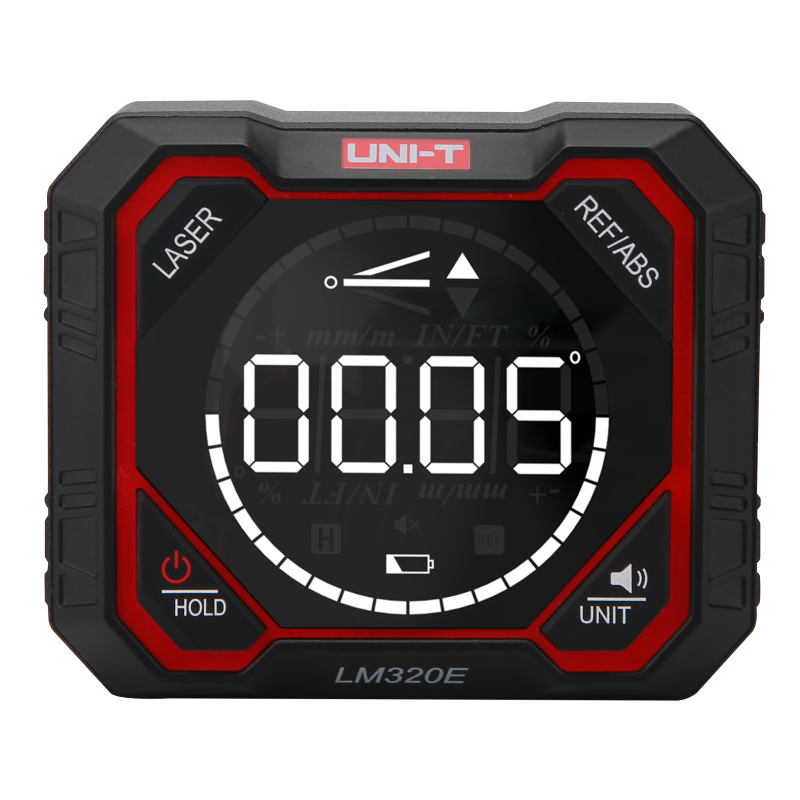

Yes — the screen is LED-backlit and rotatable, making it easy to read from different working angles and in dim conditions.
Does it have a laser?
Yes, the meter is equipped with 2 laser lines for alignment and reference indication.
How is it powered?
It runs on a rechargeable 1000 mAh lithium battery — no disposable batteries needed.
Can it attach to metal surfaces?
Yes, it has magnetic bases on two sides, allowing hands-free attachment to steel beams, machines, and other ferrous surfaces.
What material is it made of?
The frame is made of aluminum alloy, keeping the device lightweight and durable.
How portable is it?
Very — it measures 83.5 × 70 × 35.5 mm and weighs only 180 g, so it fits easily in a toolbox or pocket.
What are some typical uses?

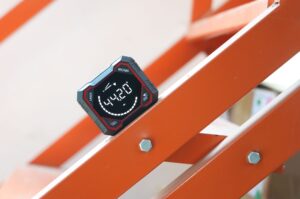

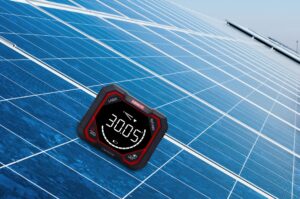

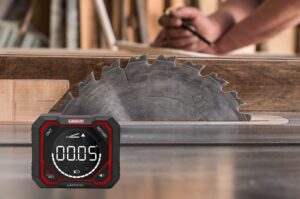

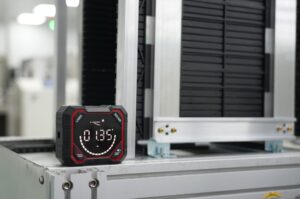

It’s ideal for checking slopes, leveling machinery, installing rails or pipes, carpentry, automotive work, and any task requiring precise angle or tilt measurement.
