Description

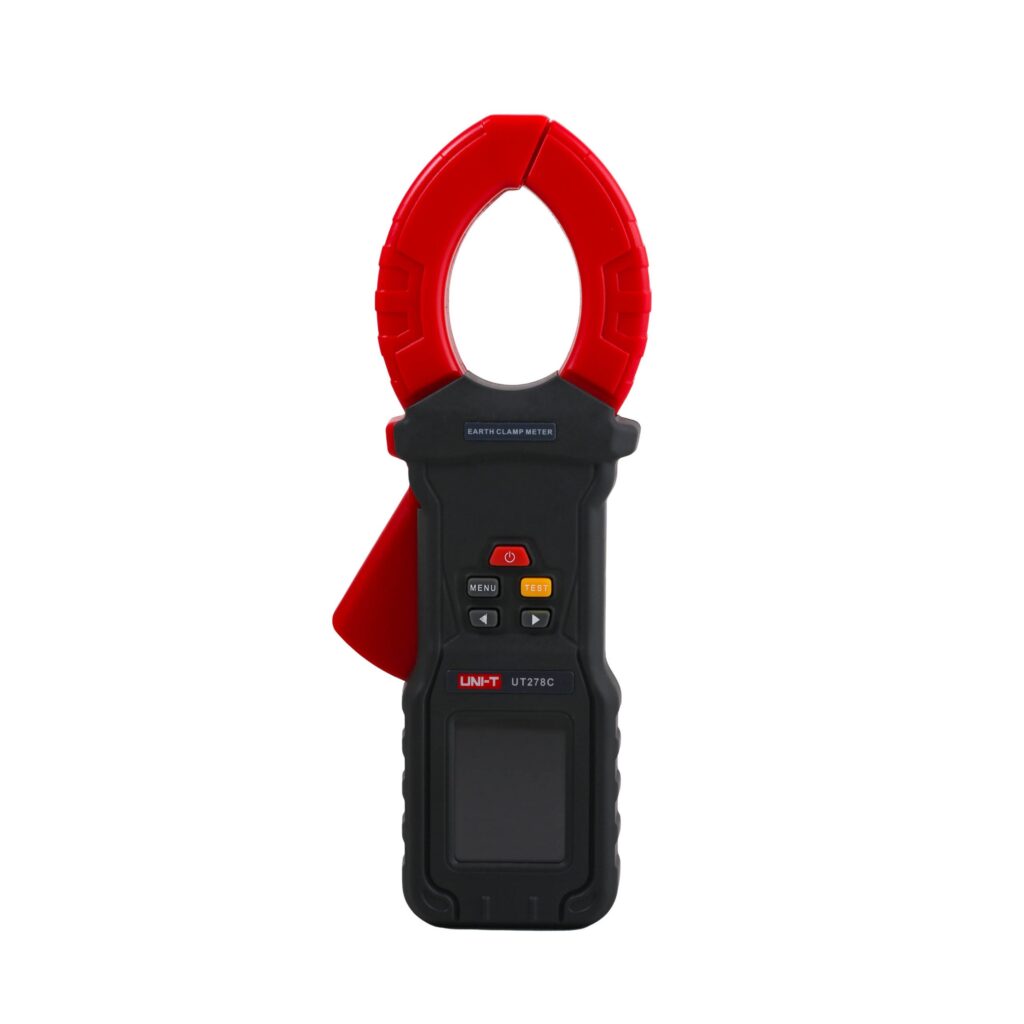

Clamp Earth Resistance Tester 1800 Ohm 50A
- 2.4-inch color LCD
- Earth resistance measurement
- Leakage current measurement
- Load current measurement
- Grounding voltage measurement
- Soil resistivity measurement (UT278C & D)
- Alarm function
- USB data transfer
- Built-in rechargeable lithium battery
| Specification |
UT278C |
| Ground Resistance Range |
0.00Ω–1800Ω |
| AC Current Range |
0.000A–50A |
| Current Resolution |
1μA |
| 3 or 4-Wire Method Resistance |
0.00Ω–30KΩ |
| Soil Resistivity Range |
0.00Ω–9999KΩ |
| Ground Voltage |
600V |
| Accuracy Guarantee Conditions |
23°C ± 5°C, below 75% RH |
| Power Supply |
DC 3.7V lithium battery |
| Battery Indicator |
Real-time battery power display with charging reminder |
| Jaw Size |
68mm |
| Display |
2.4-inch (46 × 29mm) color LCD |
| Measurement Rate |
1 measurement per second |
| USB Data Upload |
Stored data can be uploaded, saved, and printed |
| Data Storage |
500 sets |
| Overload Indication |
“OL” indication |
| Backlight |
Yes |
| Alarm Function |
Yes |
| Auto Power Off |
Approximately 15 minutes |
| Maximum Power Consumption |
750mA |
| Overload Protection |
Yes |
| Weight |
975g (including battery) |
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
Below 80% RH |
| Storage Temperature |
-10°C to 60°C |
| Storage Humidity |
Below 70% RH |
| Insulation Resistance |
Greater than 20MΩ (500V between circuit and case) |
| Withstand Voltage |
AC 3700V RMS (between circuit and case) |
| External Magnetic Field |
Less than 40A/m |
| External Electric Field |
Less than 1V/m |
| Safety Standards |
IEC 61010-1, IEC 61010-031, IEC 61557-1 (Ground Resistance) |
| Measurement Category |
CAT III 300V, CAT IV 150V |
| Pollution Degree |
2 |
