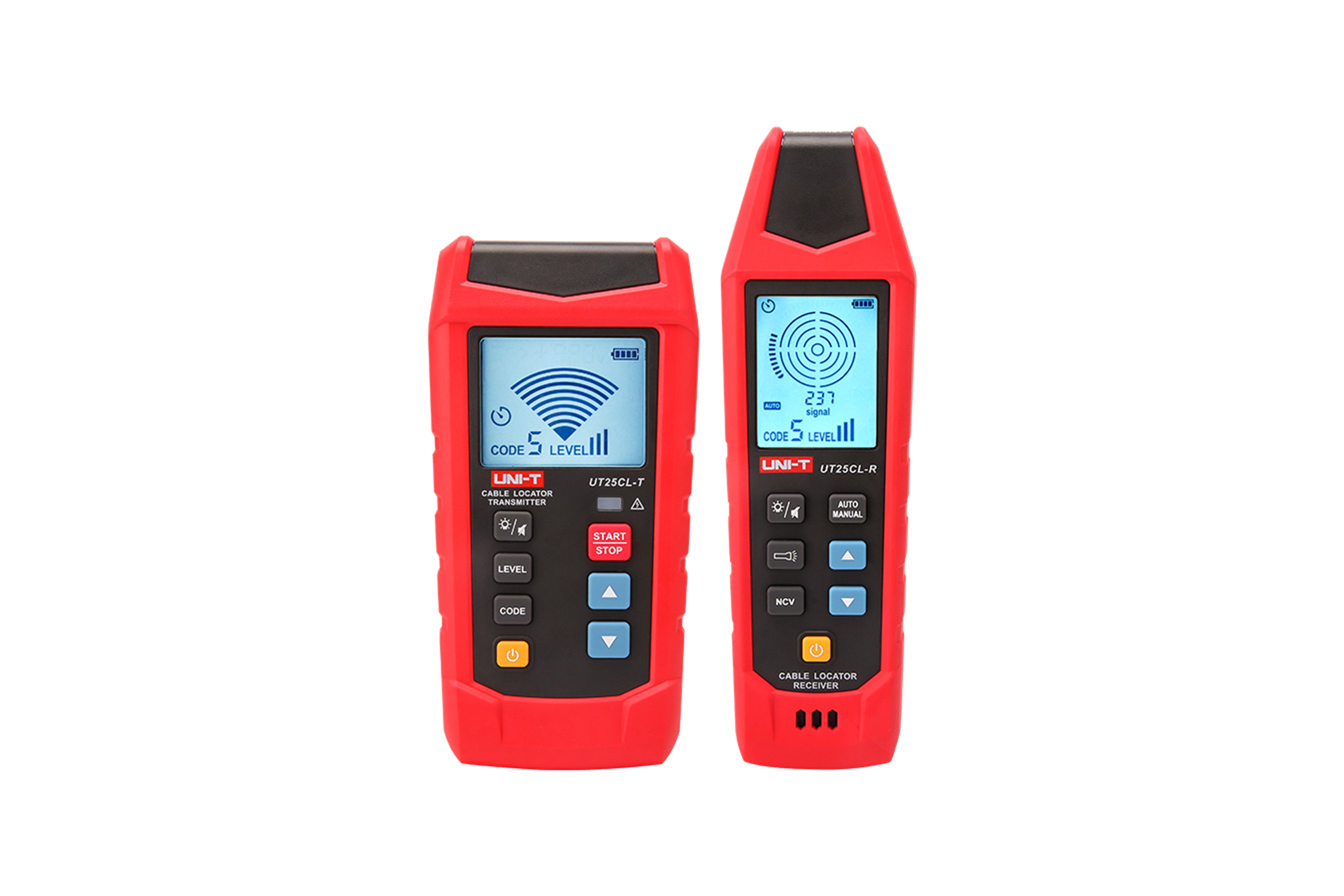

UT 25CL

What can this cable locator detect?

The cable locator detects low-voltage wires, live conductors (energized wires) up to 480V AC/DC, fuses, and metal pipes. It can also trace underground cable paths and identify conductor interruptions or short circuits.

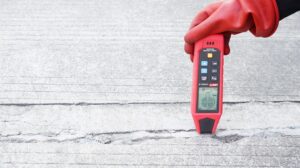

How deep can it detect underground cables?

The locator can detect underground wires and cables at depths of up to 2.5 meters.

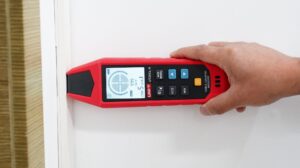

Can it find wires inside walls?

Yes. The device finds conductors inside walls and can detect conductor interruptions or short circuits within them.

Can it detect live (energized) wires?

Yes. It supports energized wire detection up to 480V in both AC and DC.

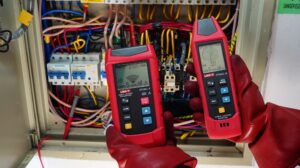

Can it locate fuses?

Yes. The locator locates fuses and identifies the devices and circuits associated with each fuse.

Does it work for underfloor heating systems?

Yes. It identifies short circuits and open circuits in metal underfloor heating systems.

Can it trace metal water and heating pipes?

Yes. The locator can trace metal water pipes and metal heating pipelines.

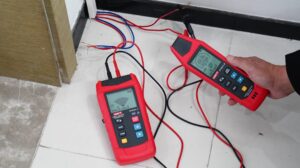

How many transmitters can one receiver support?

One receiver can support up to 8 transmitters, making it convenient for multi-point or large-area tracing jobs.

Can I adjust the receiver sensitivity?

Yes. Sensitivity can be adjusted automatically or manually, with 3 adjustable levels for precise detection.

Does it have a flashlight and backlight?

Yes. The device is equipped with flashlight and backlight functions, so you can work easily in dark or low-light environments.

Does it have an auto shut-off feature?

Yes. The locator has an automatic shutdown function to save battery life when not in use.

Is this tool suitable for professional electricians?

Absolutely. With its 2.5m underground detection depth, 480V live-wire capability, multi-transmitter support, and fault-finding functions, it’s designed for both professional electricians and DIY users.
