What is True RMS?
True RMS (Root Mean Square) means the meter accurately measures both pure sine waves and distorted/non-sinusoidal AC signals — such as those from variable frequency drives, switches, or computers — giving you a reliable reading where an average-responding meter would not.
What can this meter measure?
It measures AC/DC voltage up to 600V, resistance up to 60MΩ, capacitance up to 99mF, and temperature. It also supports NCV/LIVE detection for identifying live wires without contact.
What does “6000 counts” mean?
It refers to the meter’s display resolution. With 6000 counts, the display can show values with higher precision than basic 2000-count meters, giving you more detailed readings.
What is Intelligent Identification Gear?
The meter automatically detects the type of measurement (voltage, resistance, capacitance, etc.) and selects the correct range for you, so there’s no need to manually switch functions or ranges.
What is NCV/LIVE measurement?
NCV (Non-Contact Voltage) and LIVE detection let you sense the presence of AC voltage in wires, outlets, or cables without touching them — a fast, safe way to find live lines.
Can it measure both AC and DC voltage?
Yes. The meter measures AC and DC voltage up to 600V, covering most household, automotive, and industrial applications.
How large a resistance can it measure?
Up to 60MΩ (60 megohms), suitable for testing insulation-related components, high-value resistors, and leakage paths.
How large a capacitance can it measure?
Up to 99mF (99,000µF), which covers most large electrolytic capacitors found in power supplies and motor circuits.
Does it measure temperature?
Yes. The meter supports temperature measurement (via a temperature probe, depending on the included accessories).
Is the meter safe to use?
Yes. It features full-scale input protection across all ranges, guarding the meter and the user against overloads, transients, and misuse.
How is the meter powered?
It has a built-in rechargeable lithium battery and charges via a standard Type-C USB port — no disposable batteries needed.

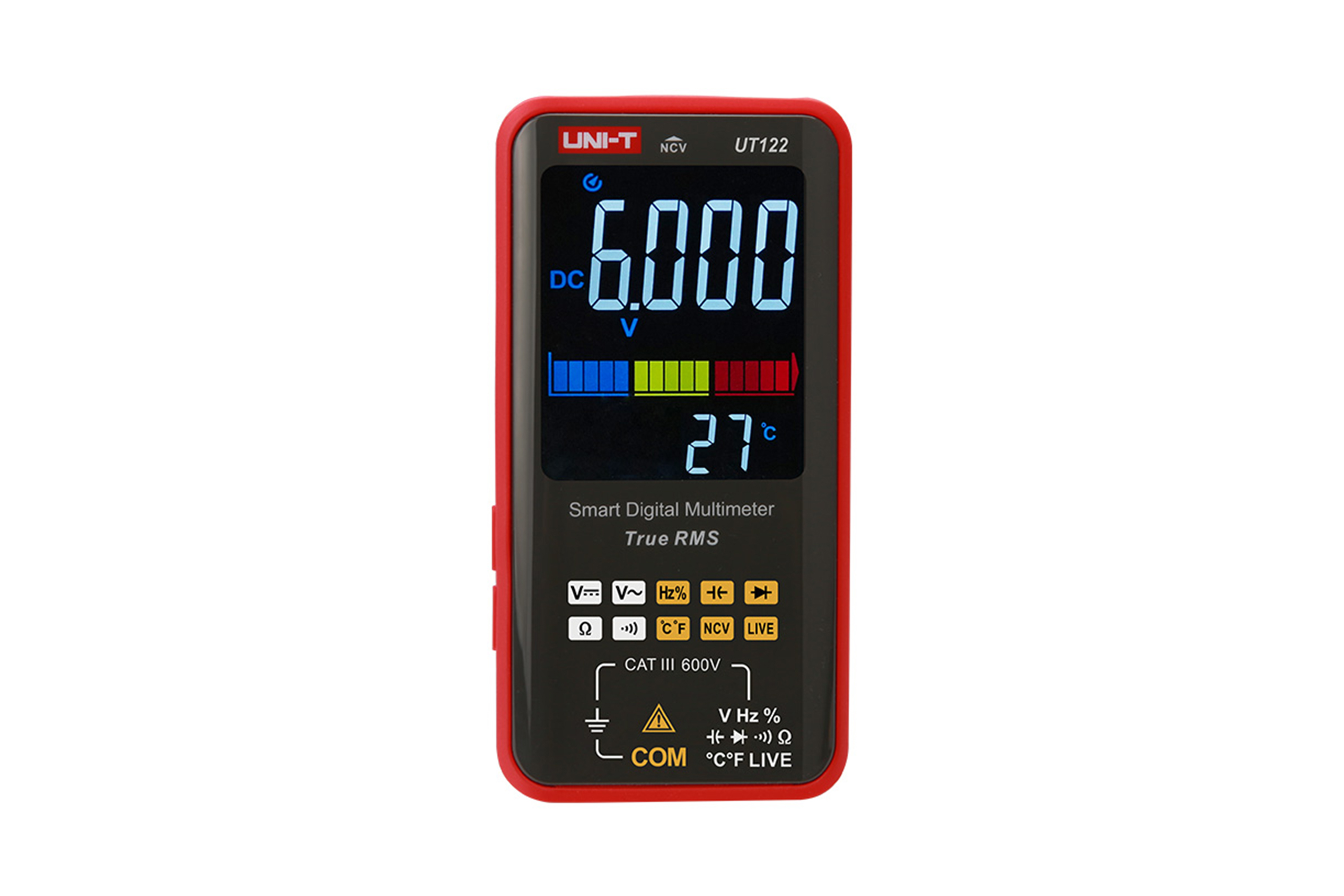

How big is the display?
It features a large-size LCD screen for easy reading of measurements, even from a distance or in low-light work environments.

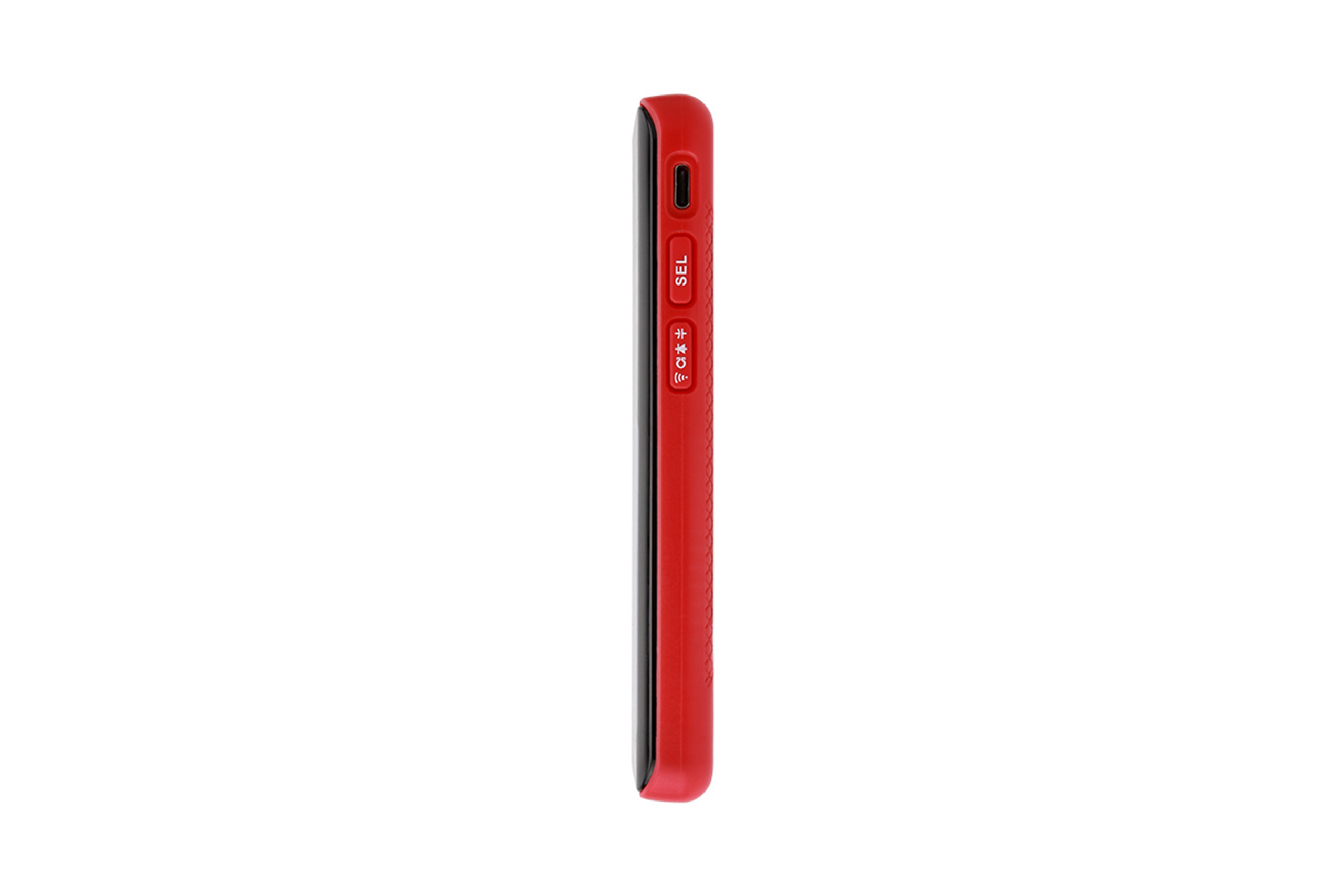

How portable is it?
Very. The body is only 19mm thick (ultra-slim design), so it fits easily in a toolbox, pocket, or bag.
