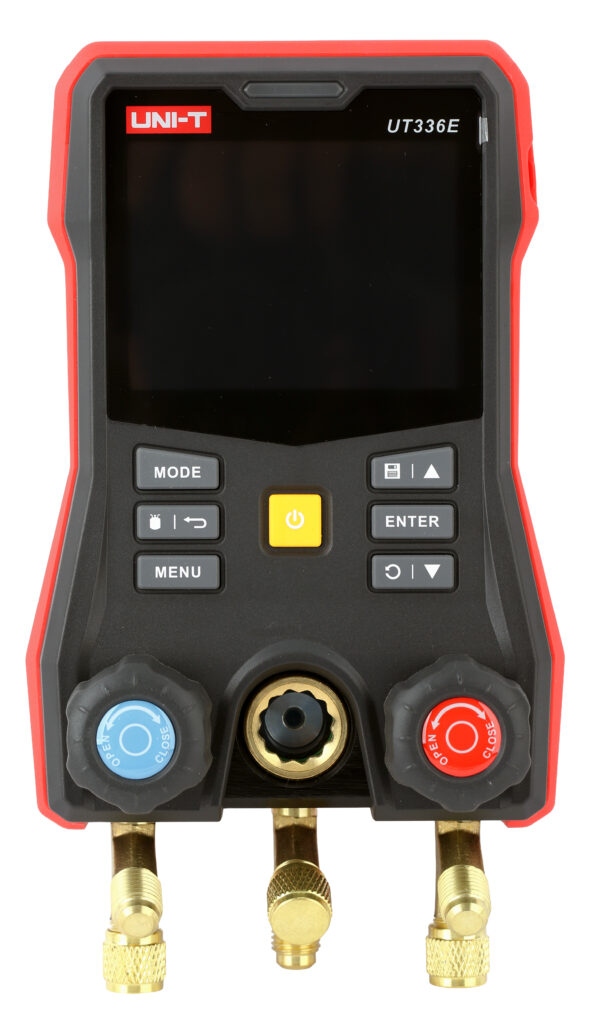

3.5”HD Color Screen
10000 Data Storage
Tap-to-wake Backlight
IP54 Rating
5200mAh Rechargeable Lithium Battery
Built-in 160+ Database
Metal Hook Design
Wireless Temperature Clamps and Vacuum Gauge Connection
Mobile APP
Automatic Superheat/Subcooling Calculation
Product Size:UT336E: 203×117×70mm; UT320i: 156×79×40mm
Product Weight: UT336E: About 836g; UT320i: About 156g
| Specification | ||
| Pressure Range/Resolution | -1.00~+60.00 bar | 0.01 bar |
| -100~+6000 kPa | 1 kPa | |
| -0.100~+6.000 MPa | 0.001 MPa | |
| -14.5~+870.2 psi | 0.1 psi | |
| -1.02~+61.18 kgcm² | 0.01 kgcm² | |
| -75.0 to 4500 cmHg | 0.1 cmHg | |
| -29.5 to 1771 inHg | 0.1 inHg | |
| Temperature Range | -50~150℃ | 0.1℃ |
| -58 -302℉ | 0.1℉ | |
| Pressure Accuracy | ±0.5% FS | |
| Temperature Accuracy | ±0.5℃（-50~80℃）, ±1℃(other) | |
| Pressure Unit | bar, kPa, MPa, psi, kgcm2, cmHg, inHg | |
| Temperature Unit | ℃, ℉ | |
| Alarm | Yellow LED/Buzzer alarm | |
| Wireless Range | 100m | |
| IP Rating | UT336E:IP54 | |
| UT320i: IP65 | ||
| Refrigerant Type | 162+ | |
| Evaporation & Condensation Temperature | ✔ | |
| High/Low-Pressure Measurement | ✔ | |
| Superheat/Subcooling | ✔ | |
| Pressure Zeroing | ✔ | |
| Refrigeration/Heat Pump Mode | ✔(Auto detection) | |
| Evacuation Mode | ✔ | |
| Pressure Holding Mode | ✔ | |
| Data Record | 10000 | |
| Temperature Compensation | ✔ | |
| Mobile APP | ✔ | |
| OTA Upgrade | ✔ | |
| Language Setting | EN, FR, DE, IT, ES, SV, PL, CZ, CN | |
| Auto Screen Off | ✔ | |
| Auto Power Off | ✔ | |
| Interface | 3×1/4” SAE | |
| Working Temperature & Humidity | -20～50℃＜90%RH (non-condensing) | |
| Storage Temperature & Humidity | 20～60℃ ＜90%RH (non-condensing) | |
| General Characteristics | ||
| Battery | Built-in rechargeable lithium battery: 3.7V 5200mAh | |
| Battery Life | > 30h, (backlight 50%, wireless connection OFF) | |
| Size | UT336E: 203×117×70mm; UT320i: 156×79×40mm | |
| Weight | UT336E: About 836g; UT320i: About 156g | |
| Accessories | Digital Manifold Gauge*1, Wireless Temperature Clamp*2, User Manual*1, Safety Guide*1, Refrigerant Hose*3, USB-C Charging Cable*1, Tool Box*1 | |
| Standard Quantity Per Carton | 1pc | |
