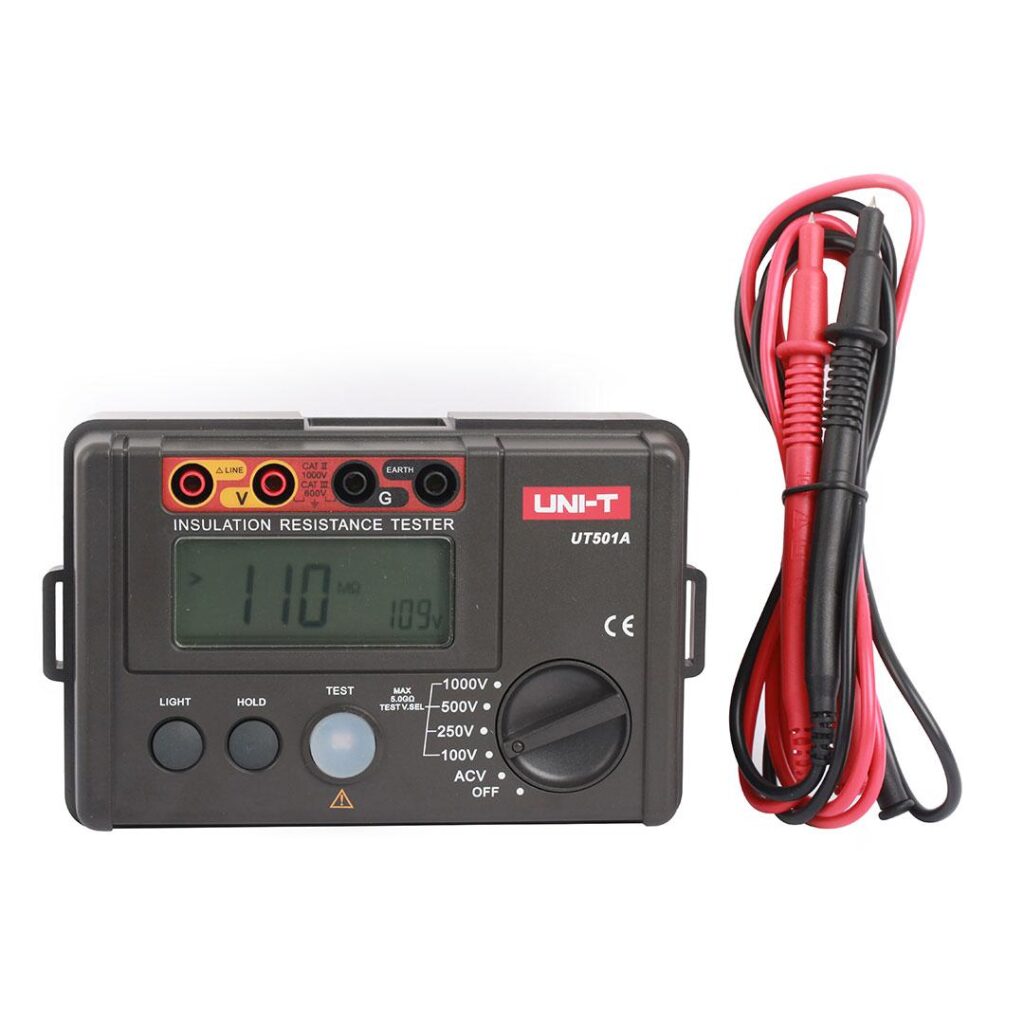

UT 501A

  • Brand : Uni-T
  • Model : UT 501A
  • Description : Insulation Resistance Tester (High Voltage Indication)
  • Country of Origin : China

Overview

Specifications

Specifications Range UT501A
Insulation resistance (Ω) Test voltages 100V/250V/500V/1000V 0%~10%
100V 0MΩ~100MΩ ±(3%+5)
250V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~5GΩ ±(5%+5)
500V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~5GΩ ±(5%+5)
1000V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~5GΩ ±(5%+5)
Load current 50V (R=50kΩ) 1mA 0%~10%
100V (R=100kΩ) 1mA 0%~10%
250V (R=250kΩ) 1mA 0%~10%
500V (R=500kΩ) 1mA 0%~10%
1000V (R=1MΩ) 1mA 0%~10%
Short-circuit current <2mA
AC voltage (V) 30V~750V ±(2%+3)
Features
Display count 2000
Auto range/Low battery indication
LCD backlight/Light alarm
Buzzer alarm/High voltage indication
Over load indication/Auto discharge
Test voltage secondary display
10MΩ internal resistance test
General Characterisitics
Power 1.5V battery (LR6) x 6
Display 70.6mm x 34mm
Product color Red and grey
Product net weight 500g
Product size 150mm x 100mm x 71mm
Standard accessories Batteries, test leads, alligator clips, gallus
Standard individual packing Gift box, carrying bag, English manual
